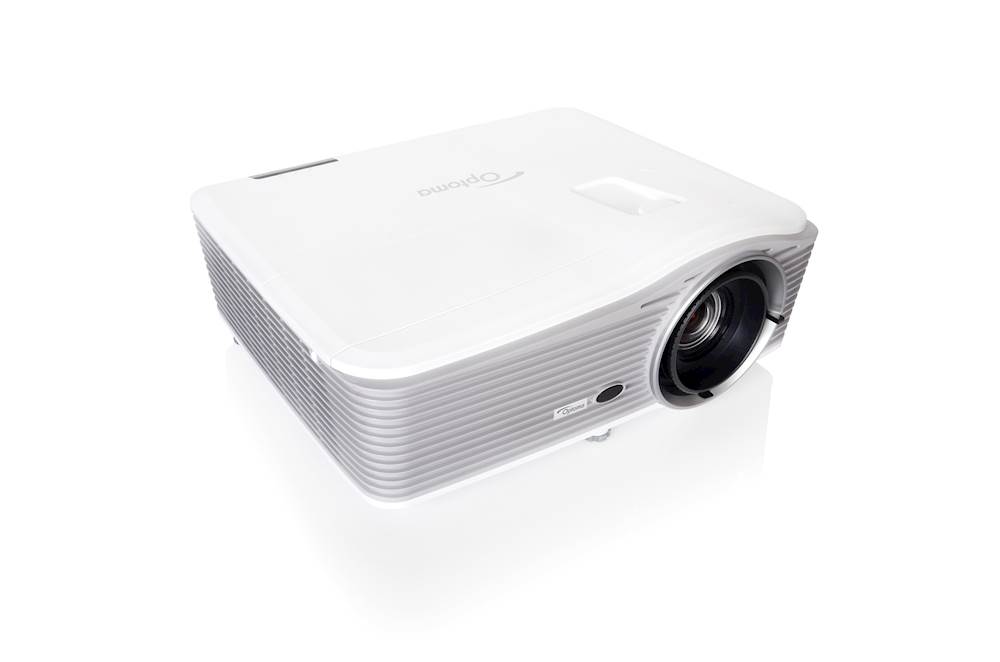

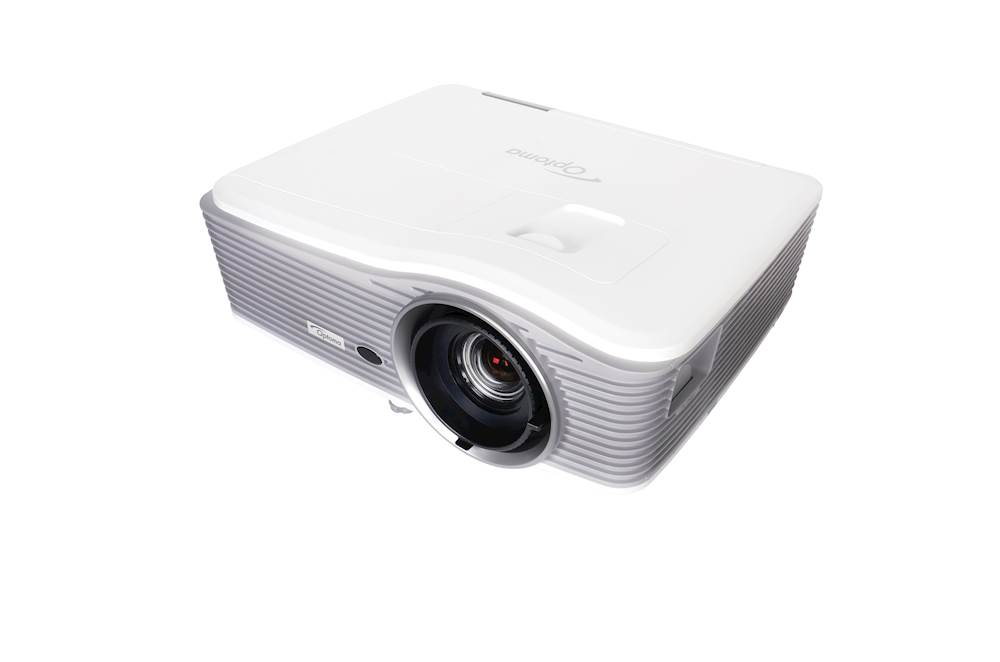

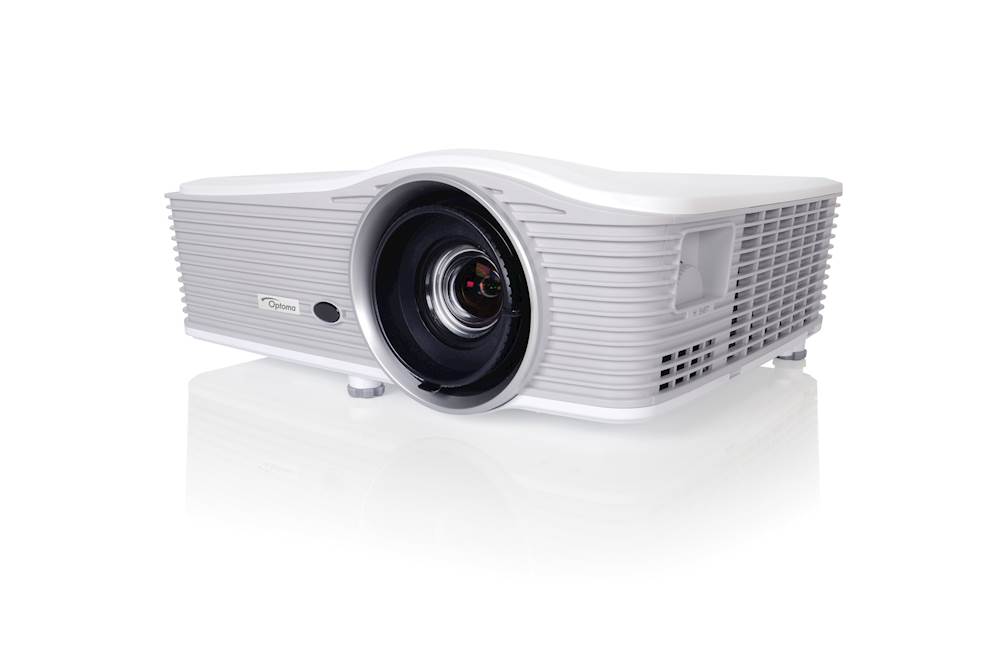

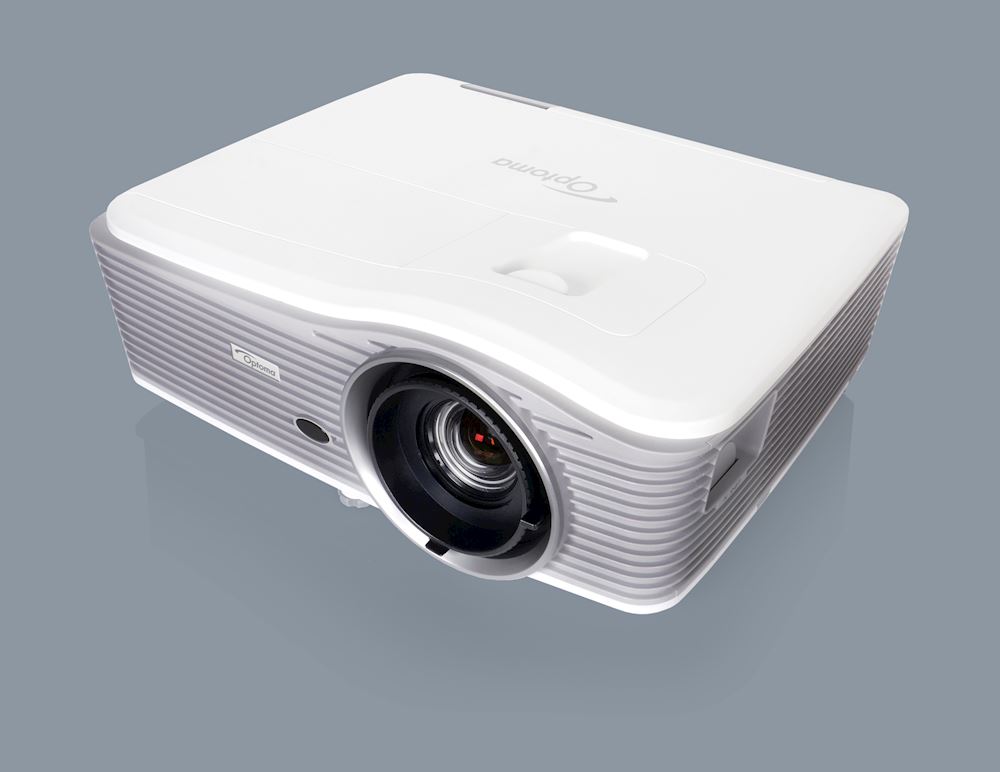

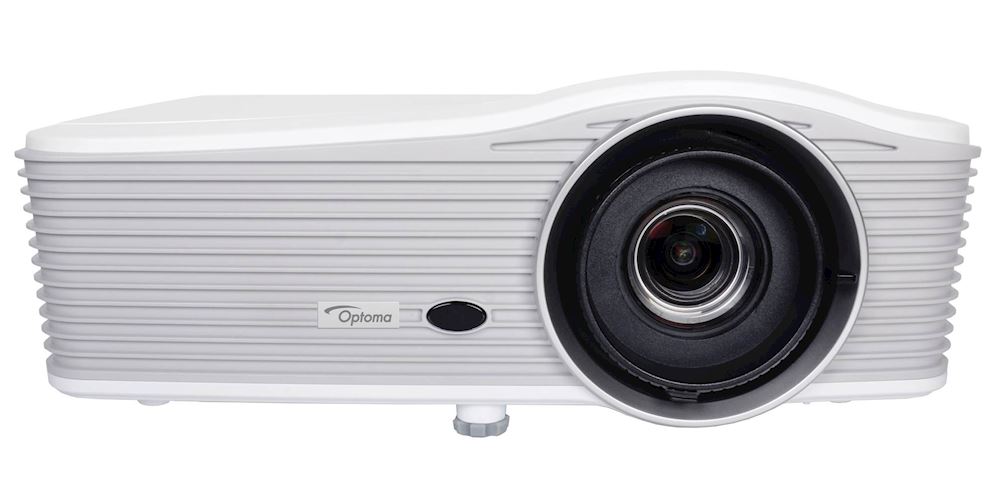

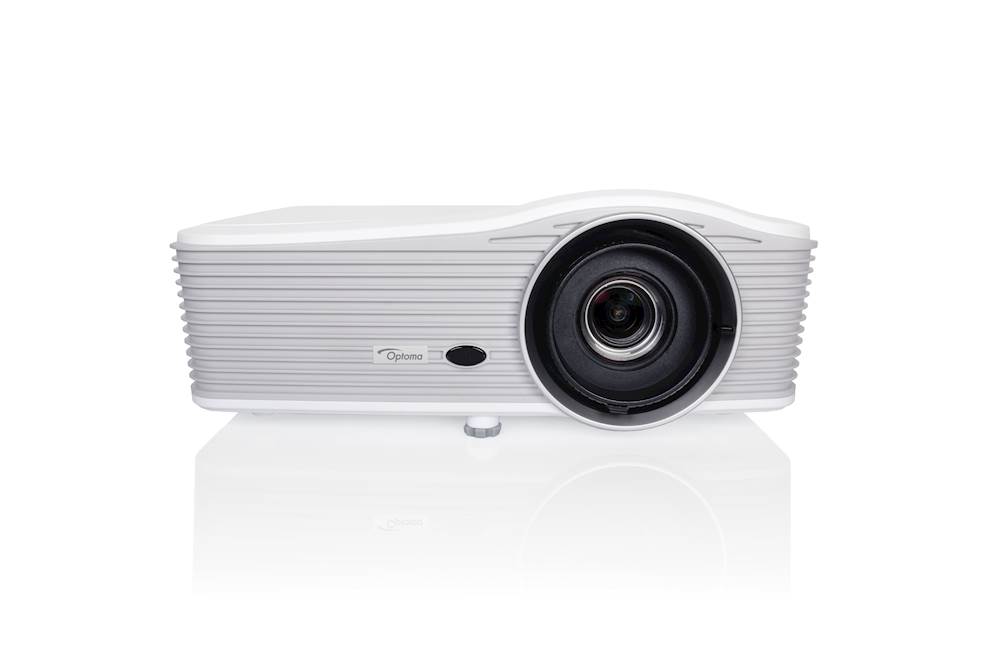

WU515T


Write a review

A powerful performer

The WU515T large venue projector produces Full HD quality images for sharper, clearer images and presentations. This professional installation projector boasts a brightness of 6000 lumens and features multiple digital connection options, with two HDMI inputs, DisplayPort and HDBaseT™. For more complex installations, this projector is equipped with a large zoom range, lens shift and a built-in geometric adjustment feature - ideal for image stacking, uneven walls or where a projector placement is awkward and needs to be installed at an angle.

Features

Ultra bright WUXGA projector – 6000 ANSI lumens
Installation flexibility – 1.8x zoom
Vertical and horizontal lens shift
Four corner geometric projection

PureShift

Simplify installation with PureShift, which provides a wide range of projector placement possibilities.

*Check the user manual for detailed lens shift information

HDBaseT™

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

Four corner correction

Brightness matching

A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine tuned to give the same brightness levels; important, especially when side by side.

Full 3D

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

MHL

MHL

Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.

USB-Power

Use the USB-Power to power an HDMI dongle

Wired remote

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Control

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX Compatibility Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• LAN Control Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer. • Schedule the projectors to power on/off. • Control and alter the projector settings using the simple web browser. • Emergency text broadcast capabilities for urgent or important announcements. • Automatically receive email updates for lamp maintenance.

PJLink

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Telnet

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

AV mute

AV mute

Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.

Auto power off

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Direct power on

The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.

Direct power off

Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

24/7 operation

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

Customise your projector

Customise your projector

Have your projector in any colour. Chose from any RAL colour. Perfect for bespoke installations. *Contact us for more information"

Accessories

OCM818B-RU
OCM818B-RU
OCM815B
OCM815B
OCM815W
OCM815W
ZD302
ZD302
HDCast Pro
HDCast Pro
5 Year Limited ProAV Projector Warranty
5 Year Limited ProAV Projector Warranty
EMEA standard warranty
EMEA standard warranty
QuickCast Bundle
QuickCast Bundle
QuickCast starter kit
QuickCast starter kit
WHD200
WHD200

Case studies

A different vibe on every level for YES live music venue
A different vibe on every level for YES live music venue
Light and video impress at Out of Space festival
Light and video impress at Out of Space festival
Museum of Moscow magically transformed into Andersen's fairy tale land
Museum of Moscow magically transformed into Andersen's fairy tale land
Shining the light on Death and the Girl
Shining the light on Death and the Girl

Display/image

Display technology
DLP
Resolution
WUXGA (1920x1200)
Brightness
6,000 lumens
Contrast ratio
10,000:1
Native aspect ratio
16:10
Aspect ratio - compatible
4:3,16:9
Keystone correction - horizontal
+/-30°
Keystone correction - vertical
+/-30°
Has vertical auto keystone correction
Yes
Displayable colours (millions)
1073.4
Horizontal scan rate
15.375 ~ 91.146Khz
Vertical scan rate
24 ~ 85(120 for 3D)Hz
Uniformity
85%
Screen size
0.71m ~ 7.62m (27.9" ~ 300") diagonal

Lamp info

Light source type
Lamp
Lamp watts
365
Lamp life (hours)
3000 (Bright), 5000 (Eco+)

Optical

Throw ratio
1.2:1 ~ 2.16:1
Projection distance (m)
1.3m - 7.8m
Zoom
1.8
Zoom type
Manual
Focal length (mm)
17.63 ~ 31.36
Lens shift
Vertical +20%, Horizontal +10%
Native offset
100%

Connectivity

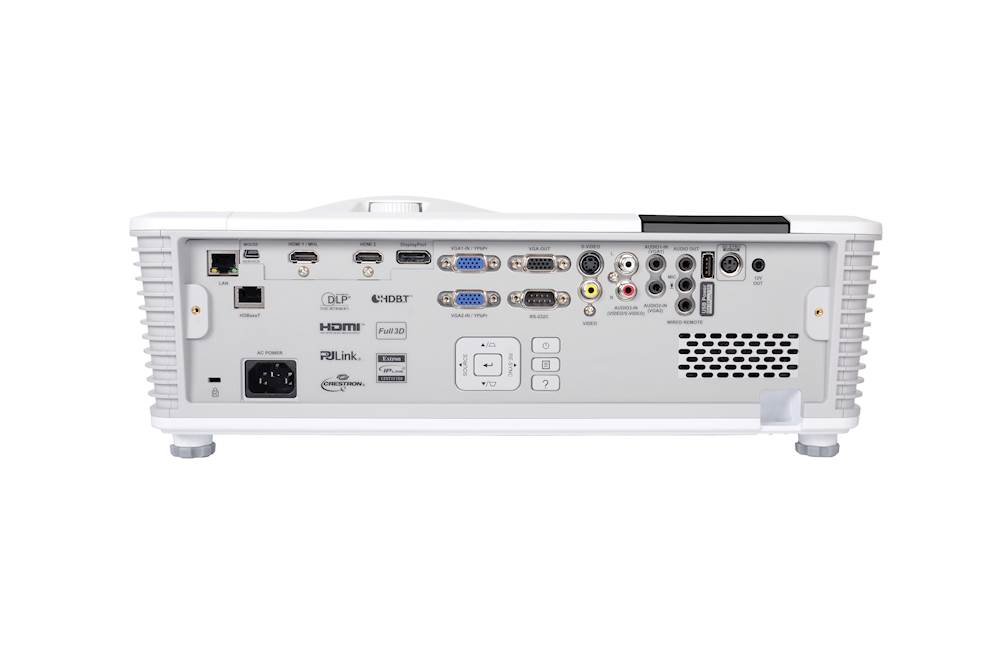

Connections
Inputs 1 x DisplayPort, 2 x VGA (YPbPr/RGB), 1 x HDMI 1.4a 3D support, 1 x HDMI 1.4a 3D support + MHL, 1 x S-Video, 1 x RS232, 1 x USB-B mouse/service, 1 x RJ45, 1 x HDBaseT, 1 x Wired remote, 1 x Audio RCA L&R, 2 x Audio 3.5mm, 1 x Mic 3.5mm
Outputs 1 x 12V trigger, 1 x USB-A power 1.5A, 1 x 3D sync, 1 x Audio 3.5mm

General

Noise level (typical)
28dB
PC compatibility
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
Operating conditions
5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m
Remote control
Backlit ProAV remote
Speaker count
2
Watts per speaker
10W
In the box
AC power cord
Remote control,
2x AAA batteries
Basic user manual
Optional wireless models
HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200

Networking

LAN - control
Yes

Power

Power supply
100V ~ 240V ± 10%, 50-60Hz
Power consumption (standby)
0.5W
Power consumption (min)
340W
Power consumption (max)
425W

Weight and dimensions

Net weight
5.9kg
Dimensions (W x D x H) mm
424 x 344 x 160
