BX-CTA16

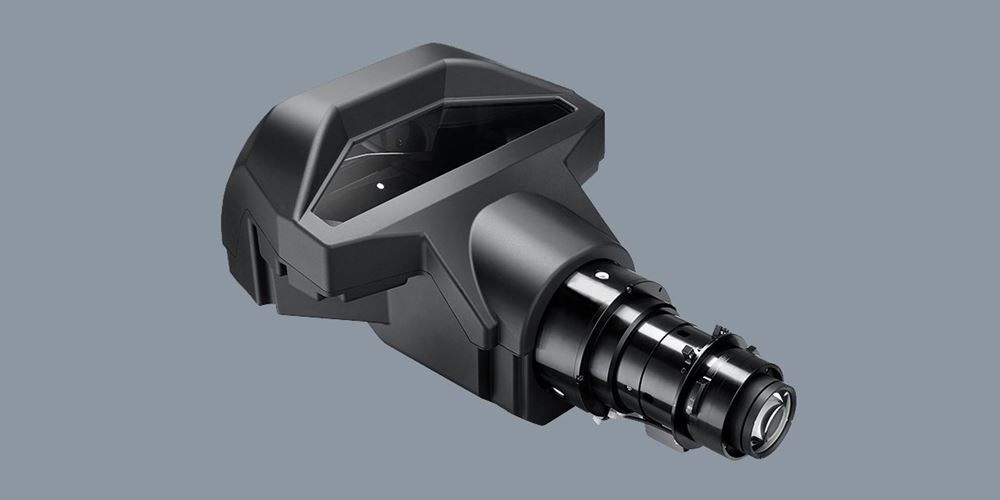

BX-CTA16Ultra short throw lens for big images in small spaces

Ultra short throw lens for big images in small spaces

The BX-CTA16 ultra short throw lens is ideal for installations with restricted placement distance from the screen area.

The ultra short throw ratio of 0.36:1 lens can produce an image size of 120" up to 400"

Features

0.36:1 throw ratio, project images up to 7.5m wide from less than 3 metres away
Designed for the Optoma ZU1050, ZU860, ZU750 and ZU660e DuraCore laser projectors
Perfect for digital signage, retail, leisure and entertainment installations
Enables installations in environments with restricted space

Accessories

ZU1050
ZU1050
ZU660
ZU660
ZU850
ZU850
EMEA standard warranty
EMEA standard warranty

Recommended

ZU1050
ZU1050
ZU660
ZU660
ZU660e
ZU660e
ZU750
ZU750
ZU850
ZU850
ZU860
ZU860

General

Net weight
5.23kg
In the box
A16 lens adaptor, Support bracket Kit , Boresight adjustment Tool, L shape tool, Boresight extender x3

Lens

Throw ratio (min)
0.36
Throw ratio (max)
0.36
Offset
142%
Min throw distance
0.96
Max throw distance
3.01
Min screen size
120
Max screen size
400
Zoom type
Fixed
Motorised lens
Yes
