MCTRL660


Write a review

LED display controller

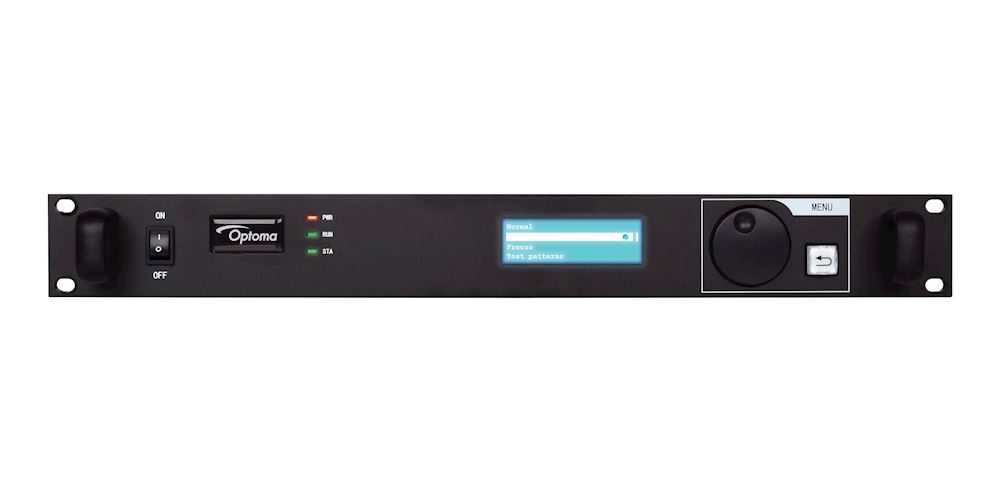

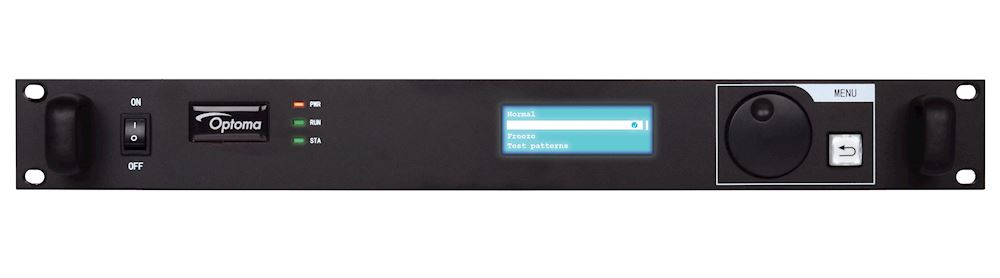

The MCTRL660 controller for Optoma LED displays allows you to manage your visual needs from a single master controller with the ability to display images up to a maximum of 2.3M pixels (min 256, max 2560 H/V pixels). Featuring HDMI and single link DVI inputs it accepts most common display resolutions.

Features

LED display controller - manage your visual needs from a single master controller and display images up to a maximum of 2.3M pixels (min 256, max 2560 H/V pixels)
Direct control of test patterns and manual adjustment of screen brightness
Supporting next-generation pixel-by-pixel calibration technology
19" rack mountable W x H x D (483 x 55 x 250mm)

Accessories

FHD153169
FHD153169
FHD20422
FHD20422
FHD26528
FHD26528
THD1560
THD1560
THD2080
THD2080
THD2600
THD2600
THD3125
THD3125
THD3910
THD3910
UHD156338
UHD156338
UHD20845
UHD20845
UHD261056
UHD261056
EMEA standard warranty
EMEA standard warranty

Recommended

FHD153169
FHD153169
FHD20422
FHD20422
FHD26528
FHD26528
LS200
LS200
LS200T
LS200T
LS300T
LS300T
PS200
PS200
PS200T
PS200T
PS300T
PS300T
THD1560
THD1560
THD2080
THD2080
THD2600
THD2600
THD3125
THD3125
THD3910
THD3910
UHD156338
UHD156338
UHD20845
UHD20845
UHD261056
UHD261056

Case studies

Impressive new LED display for Eurometropolitan e-Campus
Impressive new LED display for Eurometropolitan e-Campus
Serif’s Spectacular Centrepiece for Affinity launch
Serif’s Spectacular Centrepiece for Affinity launch

General

Net weight
3.6kg
Dimensions (W x D x H) mm
485 x 285 x 55
Power supply
100V ~ 240V, 50 ~ 60Hz

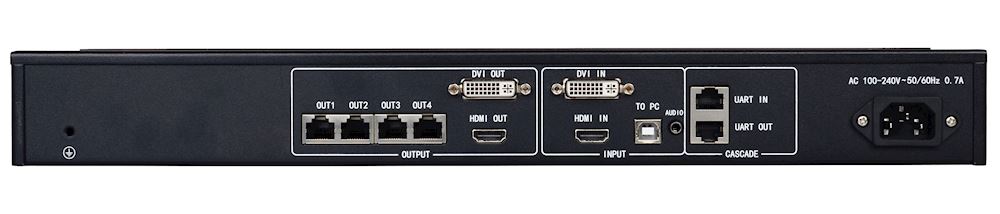

Connections
Inputs 1 x Audio 3.5mm, 1 x HDMI, 1 x DVI/HDMI
Outputs 4 x RJ45, 1 x HDMI, 1 x DVI/HDMI
Control 1 x USB-A service
