EH7500 Spectacular image quality, outstanding brightness and ultimate reliability
- 6500L
- Native WUXGA (1920x1200) - 50% more pixels that SXGA+
- Dual Lamp – [multiple redundancy, longer service intervals, 24/7 operation]
- Installation flexibility- 5x Lens options, motorised lens shift, focus and zoom
The ProScene EH7500 is the distillation of our projection expertise in a single product, an evolution, a product designed exclusively for demanding professional applications.
Dual-lamp, WUXGA and 6500 lumens delivers bright crystal clear images, ultimate reliability, and 24/7 operation to ensure that this is a projector on which you can rely.
The dust-sealed, filter free design prevents dust and dirt from affecting the system ensuring optimal image quality with minimal maintenance.
Motorised lens shift, focus and zoom combined with the extensive lens options and interchangeable colour wheels, provide installation flexibility for simple, trouble free installations.
Image Quality
Superb image quality is at the heart of every ProScene product design. At every step, commencing with the incredibly reliable, high resolution WUXGA DLP® chip, where the image is initially created, via the P-VIP lamp pulsing technology that fine tunes the colour to exacting standards, through to the precision optics to focus the image on a screen, accuracy and integrity of the image are paramount.
ProScene chose DLP® technology for its image quality and unmatched reliability. The reflective nature of DLP® micro-mirror technology provides highly efficient bright images with great contrast whilst maintaining precise colour accuracy and natural, real-world colour reproduction. For demanding professional applications, the proven reliability of DLP® technology makes it the obvious choice.
P-VIP lamps
The dual Osram 330W P-VIP lamps provide the highest possible luminance, the essential prerequisite of all highly-efficient projectors. These lamps stay brighter for longer, provide a long operating life and a low loss of luminous flux throughout that life. In addition, the lamp drivers are specifically tuned for the lamps, ensuring not only optimum operating conditions for every situation, but also provide sophisticated lamp pulsing modes and the assurance that colour can be fine tuned according to the application.
Image colour and size control
Where detail really matters, the full WUXGA (1920 x 1200) resolution offers 15% more pixels than 1080p and 60% more than SXGA+. This enables unscaled Full HD video and extra detail. Time Code information can be displayed onscreen at the same time, perfect for soundtrack recording & video editing where precise timing can be critical.
Precision Optics
Aspherical optical elements and the use of Low Dispersion (LD) glass maintain optimum sharpness and focus uniformity over the entire image. The ProScene insistence on uncompromising optical quality ensures extremely low colour flare and chromatic aberration resulting in a crystal clear, high contrast image.
Lamp Pulsing Technology
Advanced lamp-pulsing technologies enable colour performance to be fine tuned directly from the lamp. This unprecedented control helps create vibrant, perfectly saturated colours across the whole light spectrum and produces stunningly natural, life-like images.
Amazing Colour
The EH7500 incorporates BrilliantColor™ technology to produce stunningly bright images with perfectly balanced life-like colours.
All ProScene projectors are designed for continuous 24/7 operation. Only the most reliable, industry proven components are used to ensure superior reliability. This hard-earned “capability” has been meticulously developed over a decade of designing and supporting millions of projectors the world over. ProScene customers can therefore be confident that, as one of the most reliable projector brands in the industry today, Optoma has a reputation for service excellence that is well deserved.
Dual Lamps
Dual lamps enable a level of reliability simply unavailable with a single lamp projector. Both lamps can be used together to achieve maximum brightness, whilst still providing redundancy should one of the lamps fail. Alternatively a single lamp can be used in Relay Mode to combine the full lifetime of each individual lamp and thereby minimise service intervals.
Lamp Relay mode
For challenging installations where the EH7500 is run for long periods, the Lamp Relay function can be used to automatically switch between lamps.
DLP® Technology
DLP® technology from Texas Instruments® is widely recognised and acclaimed for its unmatched reliability and long lasting image performance. When combined with high brightness and native contrast ratios, it becomes the obvious choice for demanding applications. Independent testing has proven DLP® to be the most reliable of projector technologies. Whilst the competition may show image quality decline after only a few thousand hours, DLP® technology can remain unchanged over hundreds of thousands of hours.
Total Cost of Ownership
For demanding applications the total cost of ownership of a projector is not in the purchase cost and replacement lamps but in expensive maintenance and service. ProScene projectors require very little maintenance, have no user serviceable parts inside and no filters that require periodic replacement. The result is low cost, predictable service cycles, enabling planned down time to be minimised.
Once you’ve purchased an Optoma DLP® projector, we guarantee that the colours compared to other leading technologies will not fade for a minimum of 5 years.
Installation Flexibility
To help meet the seemingly limitless challenges of ProAV installations the EH7500 provides 5 lens options with motorised zoom and focus to ensure you can get the image size you require. Motorised lens shift helps you get the image exactly where you want it and the 2 colour wheel options ensure you can match the image quality and brightness exactly to the application’s requirements.
The 5 optional lenses can be easily adjusted via motorised lens-shift*, zoom and focus.
Picture-in-Picture and Side-by-Side display
Display 2 sources simultaneously with a small inset from the main image or display both sources side by side.
Compare two sets of data side-by side; the possibilities are endless.
Custom ID colours

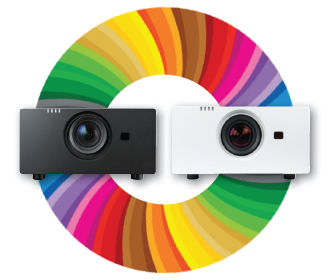

The EH7500 is available in both Black and White as standard. However if your project calls for a higher level of customisation, the EH7500 is available in any colour from the RAL colour space system.
Please contact your local sales representative for more information.
Motoroised Lens Shift
Interchangeable colour wheels
Two colour wheel options ensure the performance characteristics of the EH7500 can be tailored to match the application. The standard "data" colour wheel maximises brightness whilst ensuring good colour reproduction, whereas the enhanced-colour “video” wheel maximises colour performance and accuracy. The colour wheels are interchangeable modules and can be fitted or exchanged on site without removing the projector cover.
Data (Standard)
Video (Optional)
Lens Options
|
|
|
|
|
|
| Optoma model name |
WT1 |
WT2 |
ST1 |
TZ1 |
TZ2 |
| Throw Ratio |
0.77 |
1.2 - 1.45 |
1.45 - 1.94 |
1.94 - 3.67 |
3.67 - 6.98 |
System Integration Control
Multiple EH7500 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails or needs to be replaced. The web browser interface can also control all aspects of the EH7500.
Global monitoring of all AV devices
Track projector lamp life
Email alerts and instant notificationshelp desk requests, service reminders, device failure or theft
Ultimate control
Cut up to 30% from your engergy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.
Help Alert
Real-time interactive Help Desk requests are sorted to come to the top. The Help Desk then has the ability to respond with an automatic message or instant message the room with exact procedures.
Display Power
Check on/off status of display power and system power. View a bar graph to monitor the percentage of available projector lamp life and set an alert to notify the services department when a replacement lamp should be ordered before the lamp fails.
Schedule Event
RoomView Express makes scheduling of recurring or one time events easy. Setting RoomView to automatically power down at midnight throughout the week can save valuable lamp life and ensure security inside the facility.
Selected View by Rooms, Attributes or Contacts
RoomView Express gives you the ability to simultaneously view more than 250 rooms from a single screen. Customise RoomView to view by room name, locations and group
Room Name and Location (sortable)
Event Log
Automatically generates log files, reports and charts to analyze ROI and budget allocation. Track device usage, call statistics and user history.
Throw Distance Chart
| Diagonal Image Size |
WT1 |
WT2 |
ST0 / ST1 |
TZ1 |
TZ2 |
| |
Fixed (m) |
Min (m) |
Max (m) |
Min (m) |
Max (m) |
Min (m) |
Max (m) |
Min (m) |
Max (m) |
| 50” |
0.84 |
1.3 |
1.58 |
1.56 |
2.1 |
2.08 |
4.0 |
3.97 |
7.58 |
| 60” |
1.01 |
1.56 |
1.9 |
1.87 |
2.52 |
2.49 |
4.8 |
4.76 |
9.1 |
| 70” |
1.18 |
1.82 |
2.20 |
2.19 |
2.94 |
2.91 |
5.59 |
5.55 |
10.61 |
| 80” |
1.35 |
2.08 |
2.53 |
2.5 |
3.36 |
3.33 |
6.39 |
6.34 |
12.13 |
| 100” |
1.68 |
2.61 |
2.53 |
2.5 |
3.36 |
4.16 |
7.99 |
7.95 |
15.16 |
| 150” |
2.52 |
3.91 |
4.75 |
4.68 |
6.3 |
6.24 |
11.99 |
11.89 |
22.75 |
| 200” |
3.36 |
5.21 |
6.33 |
6.25 |
8.4 |
8.32 |
15.98 |
15.86 |
30.33 |
| 250” |
4.2 |
6.52 |
7.92 |
7.81 |
10.5 |
10.39 |
19.98 |
19.82 |
37.91 |
| 300” |
5.04 |
7.82 |
9.5 |
9.37 |
12.6 |
12.47 |
23.97 |
23.78 |
45.49 |
For guide purposes only
We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. Naturally, energy efficiency and being recyclable are built in at the design stage. With each new product, we strive towards minimising our environmental impact. For full details of Optoma Project Green please visit our website.
Eco Friendly
Cut up to 30% from your engergy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.
Direct Power On
The projector will start up instantly when power is supplied to the Unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Signal Power On
The projector will power on when it receives a signal through one of the PC/video inputs. This ensures that the projector is only switched on when it is needed.
Auto Power Off
If after a pre-determined time the projector does not receive a signal, it will turn itself off automatically, conserving power and extending the life of the lamp.
Eco Standby Mode
Reduces energy consumption to less than 1W when the projector is not in use.
All measurements are in mm
