Flexibility: The SignShow D5000 advanced digital signage player can display up to 6 multiple media zones simultaneously in addition to a background graphic.Zones can be a combination of live video (streaming), graphic, clock and time, and message tickers.
Tickers can also be horizontal or vertical, left to right or right to left scrolling and even static. The player also has full network capability to allow remote management content update, scheduling and reporting.
Full player and software security login is provided both at player level and content upload so you have full control of your signage. The D5000 supports FTP upload for overnight uploads and also local LAN selectable load balance for larger content uploads.
With Wireless setup built into the firmware users just need a low cost USB Wireless Dongle (Information on the website) to get full wireless upload and control plus live RSS and Weather feeds. This makes the D5000 far more flexible for kiosks and other digital signage installs that cannot get access to a wired LAN network or running cabling across a building.
Simplicity: InfoSAP Creator content creation software that’s bundle with the D5000 enables users to easily design, preview, publish and manage the signage message. With touch button preview you see your design in an instant and layout preview helps you design the perfect message.
Green: With low power fanless design and the compact size, the D5000 makes an immensely powerful solution that is easy to mount and place in most signage deployments. The D5000 is ideal for businesses looking for an alternative to PC based signage systems.
SVGA to Digital 1080p
|
Multiple Video, Image and Audio Support
|
|
Flexible Scheduling Capability
|
Fanless Design (Low Power)
|
|
Multi-cast video streaming
|
Auto Content Update by FTP
|
|
Integrated multi-standard video decoder
|
Player Control by Web Page
|
|
RSS and Weather ticker support
|
Multi Language
|
|
Player Security/Content Upload Login
|
Drag and drop layout design
|
|
Touch button Design Preview
|
On-Screen Layout Preview
|
|
Wireless ready
| |
| Media Capabilities | ![]() |
| InfoSAP Creator | ![]() |
|
|

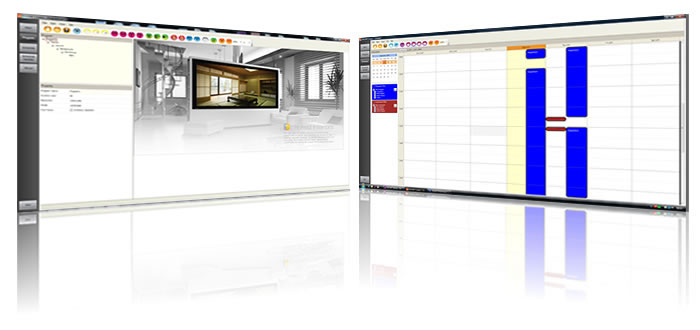

InfoSAP Creator is a Windows application which is used to design program contents for the D5000 signage player. InfoSAP Creator supports various audio, video and image file formats to meet todays business technology environment.
With its user-friendly drag and drop Windows (XP, Visa, and Windows 7) interface, InfoSAP Creator makes life easy to use multiple audio, video, graphics and tickers and combine them to play simultaneously on the same screen. Users can pick from multiple templates or design their own and save for later use.
Instant touch button preview and on screen layout preview you’re in control of your design before uploading “See before commit”. InfoSAP Creator also provides sophisticated content management which makes broadcasting information or digital advertising extremely simple.
|
-
Windows XP, Vista 32/64bit and Windows 7
-
Full Touch Button Preview Mode
-
Drag and Drop - Video, Graphics and Sound files
-
Ticker (left to right, right to left, top to bottom and Static)
-
Design or pick from predefined templates
-
See before Commit Preview Mode
|

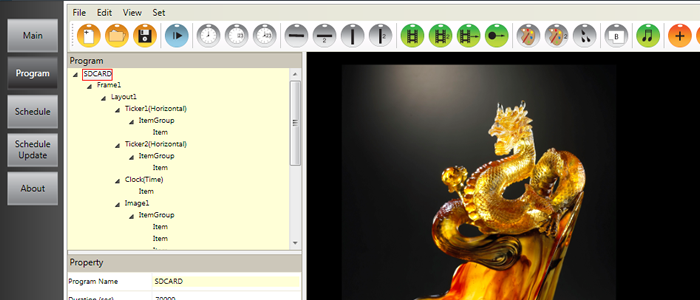

Create layouts quickly and easily using a drag and drop interface.

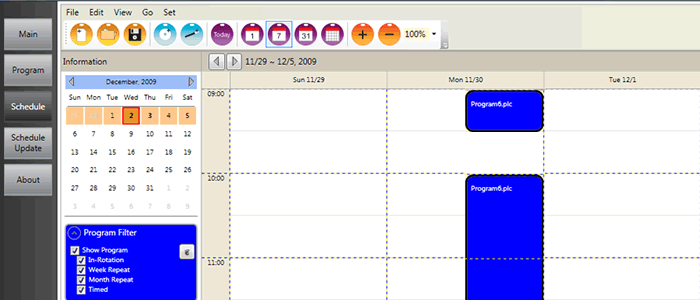

Specify a program schedule using the powerful full function on-screen calendar.
|
|
| InfoSAP Admin | ![]() |
|
InfoSAP Admin is a Client Based Administrator that allows a number of D5000s to be controlled over a Wide Area Network. The number is not limited as this depends on how many FTP sites you have on your WAN.
|
| |
|
Features
- Add players
- Content upload (single player or group)
- Player setting Setup
- Monitor player status
- Set player Date/Time, Timer, Reboot
- Security access at both player and Software level
- Auto time sync with NTP server
- Breaking News or Message Real-time Broadcasting
- Multi-client & group management Log management support output Excel file format
|
|
|
|
| Application | InfoSAP Creator | InfoSAP Admin |
| Standard User | Network Administrator |
| Suggested No. of Players | 1 to 50 | 51 to above 200 |
| Layout | Multi-zones display | InfoSAP Creator Function |
| Drag and Drop Layout Design | YES | InfoSAP Creator Function |
| Media Zones Display | Multiple Zones | InfoSAP Creator Function |
| Network Content Update | Direct/LAN | FTP |
| Live Video Input | YES | InfoSAP Creator Function |
| Music | YES | InfoSAP Creator Function |
| Auto Time Sync | PC/LAN Server/NTP | NTP |
| Client IP Mode | Static/DHCP | Static/DHCP |
| Player Management | Single/Multiple/Group | Single/Multiple/Group |
| Real-time Message | NO | YES |
| Schedule Management | 24 hour or prescheduled on day, week, month, or year | 24 hour or prescheduled on day, week, month, or year |
| Log Report | YES | YES |
| Player Security | Local Player and Creator | YES (Admin level) |
| Manual Update | YES | YES |
| Daily Auto Update | YES | YES |
| System Driver Update | YES | YES |
InfoSAP Admin uses a SQL database called DSSERVER V.2 to give the user access to any D5000 no matter where the player is. InfoSAP Admin comes in two parts, the Client Application and the Database (DSSERVER V.2), the client is installed on any PC/Laptop with Internet access, and DSSERVER V.2 is installed on a Microsoft Widows Server with Microsoft SQL. The install package allows the user to install either part depending on which application is needed.
Product Functions
Player management displays all the players and allows user to easily understand the status of each player. The functions includes
- Add players
- Player setting Setup
- Monitor player status
- Set player Date/Time, Timer, Reboot
Group management allows users to classify the players into groups. It helps users easily control, manage and update contents to multi-players in a particular group.
Login Tools is designed for server settings, including
- Server setting (User Access)
- FTP Server settings
Log function records the detailed information for each player. The log data helps analyze performance and tells the user what each player is doing i.e. when the player started, stopped and also which project was playing.
Added Functions
- Security access at both player and Software level
- Auto time sync with NTP server
- Breaking News or Message Real-time Broadcasting
- Multi-client & group management
- Log management support output Excel file format
InfoSAP Admin allows the administrator to assign an FTP to any player or groups of players thus spreading the load balance across the WAN.
Note: InfoSAP Admin is not a Creator application; you need InfoSAP Creator to make your content and then use InfoSAP Admin to upload over your Wide Area Network (WAN)
|
|
| Display Layouts | ![]() |
|
The D5000 can display up to six alternative media zones simultaneously plus background graphic and clock/Date. The images below are for information purposes only. With so many possibilities of horizontal or vertical tickers that can be scrolling left to right, right to left, top to bottom or bottom to top and even static. Two graphic images, two videos and time/date or date or even just a clock plus a background you can say the possibilities are endless.
|
|
|
Horizontal Signage
|
Vertical Signage
|
|
|
|
| Connection Options | ![]() |
WAN Connectivity
Create your content using InfoSAP Creator, then update D5000 players across the Internet using InfoSAP Admin.
|
 |
|
|
|  |
LAN Connectivity
Create your content using InfoSAP Creator, then update D5000 players on the local network.
|
|
Publish Direct
Publish directly from InfoSAP Creator to a D5000 connected to your PC either wired or wireless (optional wireless dongle required).
|
 |
|
|
|
|
