Features

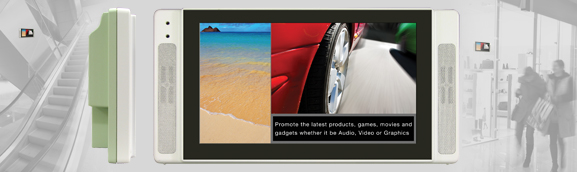

The SignShow 7" POP (Point-of-Purchase) is ideal for shops, supermarkets and department stores. The bundled creator (GLE) software allows anyone to create professional digital signage content in a matter of minutes.

Promote the latest products, games, movies and gadgets whether it be audio, video or graphic images all with or without ticker text in a simple, cost-effective solution. You can upload locally via USB, or remotely using FTP saving time and energy to get the latest story in front of customers with little effort.
Active matrix TFT LCD technology 7" diagonal panel
800 x 480 addressable pixels LAN support (LHN)
Integrated MPEG-4/MJPEG decoder Multi-Zone video/graphic display
Support SD 1.0 Card Upload via LAN (I207LHN)
300 cd/m2 high brightness
Media Capabilities

Screen

Active matrix TFT LCD technology - 7" diagonal panel with 800x480 addressable pixels.

Scheduling

Scheduled program play mode - year calendar with weekly/monthly/daily schedule settings, volume control.

Content Upgrade

Content upgrade via USB memory and LAN.

Power Consumption

13 watts (max), 7 watts (power save mode).

Deployment

VESA mountable (VESA mount optional)

General Layout Editor

General Layout Editor (GLE) is a Windows application program which is used to design program contents for digital signage players. GLE supports various audio, video and image file formats.

Audio

1W x 1W @ 8 ohms.

Safety and Security

PMMA Glass, lockable SD card slot and content protection (optional) support XFS file-system for SD card.
Layout Editor

General Layout Editor (GLE) is a Windows application program which is used to design program contents for digital signage players. GLE supports various audio, video and image file formats for functionality to meet today's fast-paced business technology environment.

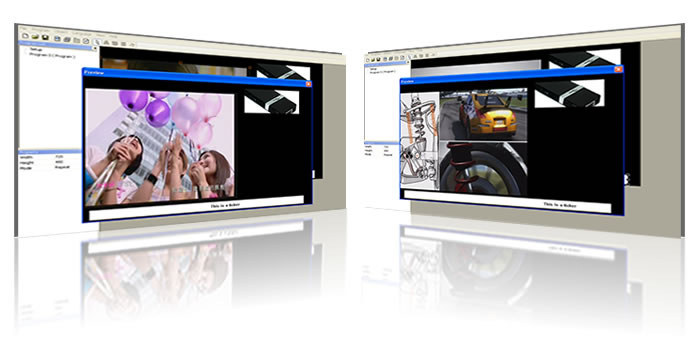

With its user-friendly Windows interface, GLE makes it easy for users to utilise audio, video, image and tickers, then combine them to play simultaneously on the same screen. GLE provides sophisticated content management which makes broadcasting information or digital advertising as simple as ever.
  • Windows XP and Vista 32/64bit
  • Full preview mode
  • Drag and drop - Video, Graphics and Sound files
  • Ticker (left to right, right to left, top to bottom)
  • Design or pick from predefined templates

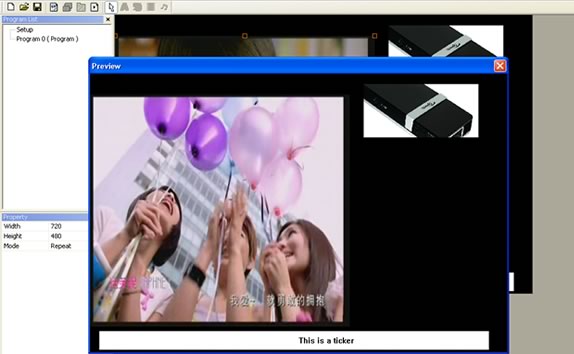

Preview mode allows you to see exactly what your audience will see before you save it to the display.
Place movies and pictures on screen and easily change the ticker text.
Connection Options

Publish to LAN

Create your content using General Layout Editor (GLE), then publish the content to 7POP displays on your network.

Publish Direct

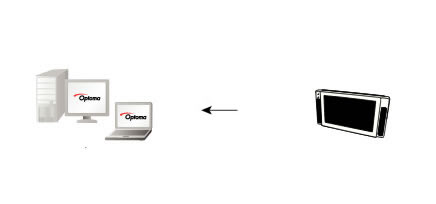

Publish directly from General Layout Editor (GLE) to a 7POP display connected to your PC/Laptop.

Publish using FTP

Schedule the 7POP to check for updates on an FTP site at user-defined times throughout the day.
